🔎 Understanding Equipotential Lines in Electric Fields

When studying electrostatics, one of the most important concepts is equipotential lines. These lines help us visualize how electric potential is distributed in different charge configurations, making it easier to understand the relationship between electric fields and potential energy.

🌐 What Are Equipotential Lines?

Equipotential lines are imaginary lines in an electric field where every point has the same electric potential. This means that if a charge moves along an equipotential line, no work is done, as the potential energy remains constant.

Key properties:

• Equipotential lines are always perpendicular to electric field lines.

• The closer the lines are, the stronger the electric field in that region.

• Moving a charge along these lines requires no energy.

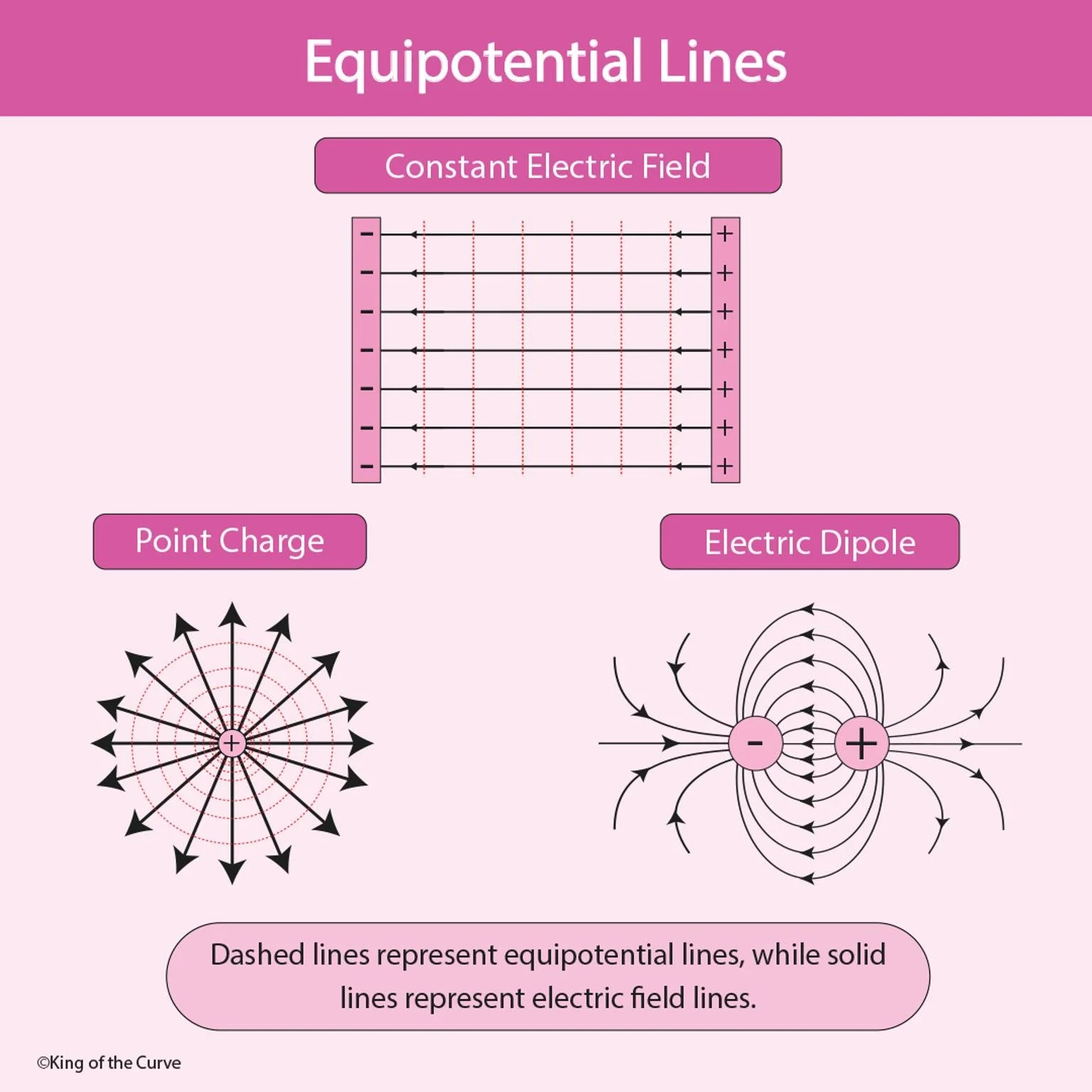

⚡ Constant Electric Field

In a uniform or constant electric field, such as the one between two parallel plates, equipotential lines are drawn as parallel and evenly spaced lines.

• Electric field lines run from the positive plate to the negative plate.

• Equipotential lines remain perpendicular to these field lines.

🔵 Point Charge

For a single point charge, the equipotential lines form concentric circles around the charge.

• Positive charges radiate outward, while negative charges pull inward.

• The electric field strength decreases as you move farther away from the charge, which is reflected in the spacing of the equipotential lines.

➕➖ Electric Dipole

In an electric dipole (a positive and negative charge placed close together), the equipotential lines bend and form complex patterns.

• They illustrate how potential changes when two opposite charges interact.

• Equipotential surfaces here are not simple circles but shaped uniquely due to the influence of both charges.

📌 Why Are Equipotential Lines Important?

Equipotential lines simplify how we understand and calculate:

• Work done on charges – moving along a line requires no work.

• Electric potential distribution – helping in visualizing fields around different charge setups.

• Practical applications – used in designing capacitors, studying electrostatics, and understanding natural phenomena like lightning.

✅ Final Thought

Equipotential lines provide a clear and intuitive way to visualize electric potential. Whether it’s the simple symmetry of a point charge or the complex interactions in a dipole, these lines bridge the gap between theory and visualization in electrostatics.

---

---
